This is a hydraulic conversion for my Kitten E394 model, found here:
https://youmagine.com/designs/4f54db69-4154-4494-8506-b1052f4053a2

Video of my Converted Kitten E394 Excavator:
https://youtu.be/yTAhQHeixfU?list=PLdh4mhBIIM2I9uXSyvEmmZ6Zh9qWGaFqf

This will replace both arms, bucket and boom mounts from the electric excavator model.
Please note that the Quick Coupler for the Kitten E394 will not work with this hydraulic conversion.

Buildplate required: 25 x 25 cm

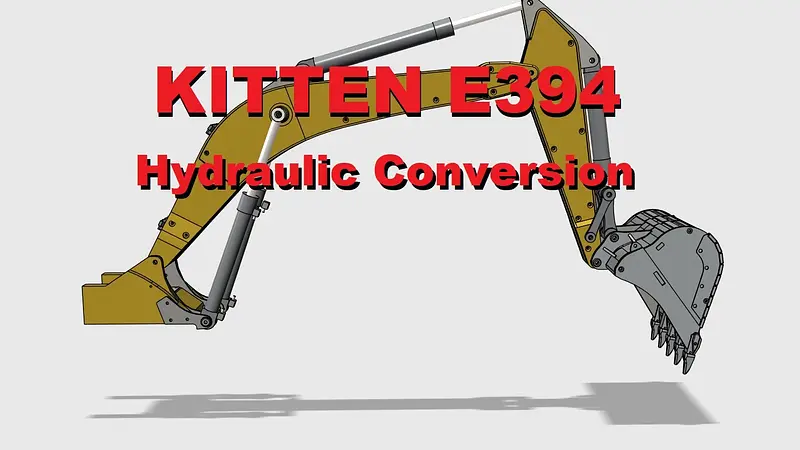

NOTE: THIS IS NOT A COMPLETE EXCAVATOR MODEL, ONLY THE ARMS AND BUCKET AS SHOWN IN FIRST PICTURES.

This build is intended to use metal plates, specifically 2mm thick steel or aluminium in order to work properly.
These plates can be cut at home, or be ordered from a company who cnc\laser cuts Metal.
I have included the DXF\STEP files for all the metal plates.

This Hydraulic Conversion is well documented through a series on Youtube.
Watch my build series of this addon here:
https://www.youtube.com/playlist?list=PLdh4mhBIIM2I9uXSyvEmmZ6Zh9qWGaFqf

The original Kitten E394 model is fully electric, this conversion will replace the arms\bucket with new parts that is compatible with hydraulics.
A complete buildmanual is included with the files.
Ive added Partslists, screwlist and pictures of all the hardware needed to make this conversion as easy as possible.
