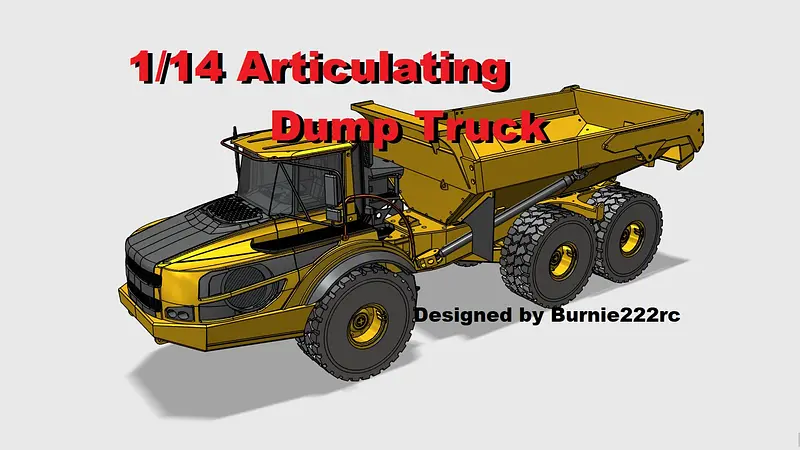

Build yourself a hobbygrade Articulating Dump Truck in 1/14th scale.
The models dimensions are : 82cm long, 24,5cm wide and 27cm tall.
Inspired of a 30 ton dump truck in reallife (Volvo A40G).

-Fully electric model with a strong 6x6 driveline, with one motor per wheel it will go almost anywhere!
-Electric tipping system that can lift over 25kg's !
-Super strong 12v Wormgear motor for high performance steering!
-Easy to build, with a 90 page build manual explaining every step until the truck is finished!
-Partslist and screwslist included.
-Realistic suspension with full articulation!
-Chassis is reinforced with steel rods!

Check out a video of the dump truck here:
https://www.facebook.com/903620410/videos/3938665466459364/

fits minimum of 25x25x25 Bed size! (I printed mine on Bambu P1P)

IMPORTANT NOTICE:
Some parts in this build MUST be printed with TPU. (important suspension bushings that must be flexible).

All STL's are pre-oriented which means less work for you! Import STL and print!
Runs on a 3S LiPo battery, 2200-5000mah.

I have tried my best at making all the parts as user friendly as I possibly can.
For those who purchase this, Thank you! And I wish you happy building!!

EDIT:
23rd March 2025 - Fixed a problem with the "TS nutmount.stl" file, it prevented the Tipping system from folding down correctly. Download V1.4d to get the update.
8th March 2025 - Added files for a Onepiece TipperBox, this is for those who have huge printers!
Download "Vulpa 4G TipperBoxOnepiece.zip" to get the files.
16th January 2025 - Added two optional GRID files for the Hood Fans. Download "Vulpa 3G and 4G VentGrids.zip" to get them.
13th January 2025 - Added an alternative to the fake cylinders, these new V2 cylinders has more detail.
Download "4G Fake Cylinders V2.zip" to get them!
10th January 2025 - Fixed a minor issue with the "Rch TS rear support.stl" file, it was missing a screwhole. This is now fixed. Download V1.4c to get the update.
9th January 2025 - Added an optional version of the front fenders, these new V2 fenders will add the missing Position-lights on the side of the fenders.
Download "Vulpa 4G Front Fenders V2.zip" to get them.
30th December 2024 - Added files to extend the height of the Tipperbox, making it capable of bigger loads. These new files only needs to be glued on top of the tipperbox. Download "Vulpa4G TipperboxExtension.zip" to get the files!
25th December 2024 - Added a zip file with new Front lights for the V1 Hood. The new files will have 3 lights per side, instead of the old 2 lights per side. Download "Vulpa4G Hood Vent 3lights.zip" to get the files.
22nd November 2024 - Added another Hood to the files. This hood is a bit "pointy'er" and in my opinion looks better. You can choose between the new or old hood. The new hood has new sidevents, but uses the same front grille as the old one.
New files are "HoodV2.stl" and "HoodV2vents.stl".
Download V1.4b to get the update.
10th November 2024 - Fixed two faulty STL's, TS motor Mounts and TS Rear support.
Updated Partslist and manual with CORRECT T8 Rod specs. It said 150mm, but you need 200mm, im so sorry for my mistake. :(
Download v1.4 to get the update.
-7th November 2024 - Fixed a minor mistake in the Buildmanual Rear Chassis step 45 where two 5x11x4 bearings were missing.
Updated the what you need.txt file and updated the required quantity for 5x11x4 bearings.
I also added the interior Steering Wheel.stl file.
Download v1.3 to get the update.
-6th November 2024 - Added a missing STL file: "Rch Axle Linkage BallJoint.stl"
Find it in the Rear Chassis folder. Sorry about that.
download V1.2d to get it!
-5th November 2024 - Minor update: Updated the "What you need.txt" file, added links to 3mm bearings and updated the correct amount of bearings needed.
Download V1.2c to get the update.
-3rd November 2024 - Fixed an error with the Cabin Roof STL file, download v1.2b to get the update!
-30th October 2024 - Added the missing Windows Template STL's. Find them in the STL folder.
Download v1.2 to get them!
-27th October 2024 - Added info about the Tipping motor in the partslist, and updated some info in the electronics Overview.
Download v1.1 to get the update!
