Now with an electronic quick coupler.

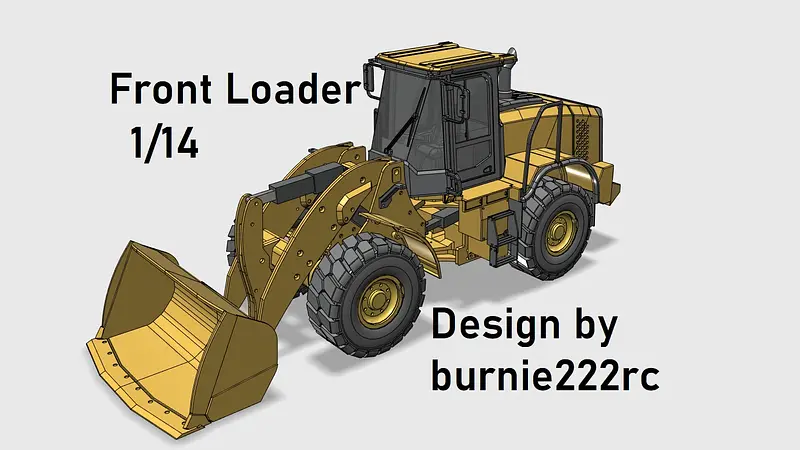

Build yourself your own hobbygrade Loader, in 1:14th scale. with Low cost parts, simple and easy assembly.
W20cm x L60cm x H25cm.
This is a fun build for everyone who enjoys building models. And does NOT require any metal work.
The files fits a 22x22cm bed.
Parts list is included in the files with pictures of the hardware needed and links where to buy it, as well as a 61 page detailed build manual.
I have tried my best at making all the parts as user friendly as I possibly can. I even exported all the STLs in the best orientation for printing WITH premade brims, so you dont have to.
Runs on a 3S lipo battery.
For those who purchase this, Thank you! And I wish you happy building!!

This loader features an electronic Qucik Coupling, which means you can swap buckets and other attachments on the fly by just tapping a switch, totally without touching the loader.
To see how you adjust and install the quick coupler, look at this video:
https://youtu.be/mloB_l_ifGo

You can also watch the entire build on youtube, and see how I built mine here:
https://www.youtube.com/playlist?list=PLdh4mhBIIM2IWKwses_ciGpOWwbudis5M
Or search for Burnie222rc on youtube, and click on "playlists".

You will need different screws and hardware. I have included a list of what you need in the files, but I will also post it here:


EDIT
14th February 2024 - Added files for a Multi-Purpose Bucket, this is a 4 in 1 bucket, download the "Multibucket Wheeledloaders.zip" file to get it. Assembly instructions and link to actuators is included.
16th september 2023 - Info about end-switches and oneway diodes were missing in the Stronger Lift upgrade textfile. This is now fixed!
EDIT 30th July 2023 - Added files to upgrade the loader with a much stronger lifting system. This system is faster, stronger, more stable and even cheaper than the old system.
Download the - "Kitten M905 Stronger Lift v1.zip" file to get them!

1st March 2023 - Added an UPDATE (KittenM905 UPDATE.zip) with new improved files for the Pendulum and Quick Coupler. This will tilt the bucket more when loading trucks. This update is a must have !!!

24th January 2023 - Added new and more realistic Wheel models to the loader files. Download the "Kitten M905 2mm Wheels.zip" file to get them.
14th January 2023 - Added Windows templates (this will make it much easier to create your own windows for the cabin)
12th January 2023 - Added a new Heavy Duty Rock Bucket (download individual file QH Rock Bucket 2.zip)
25th december 2022 - Fixed the QH Rock Bucket files, they were from an old and incompatible version. Updated to newest version. Please redownload the QuickCoupler V2.zip file.
25th december 2022 - Fixed a big error in the Quick Coupler V2.stl file. Please redownload the QuickCoupler V2.zip file.
7th december 2022 - TimberClaw added.
7th december 2022 - updated the model files to V3.

Approximate what you need:
ST = self tapping
STCS = self tapping counter sunk
M2X6ST 100PCS
M3X8ST 130PCS
M3x6STCS 12PCS
M3X6 20PCS
M3X16STCS 30PCS
M3X20 15PCS
M4x15 8PCS (included with actuators)
M5X20 3PCS
M5X30 2PCS

THREADED RODS
M3
-2x 98mm
-1x 96mm
M4
-1x 98mm
-1x 96mm
M5
-1x 81mm

BEARINGS
5x11x4 8PCS

youll need M3, M4 and M5 lock nuts
