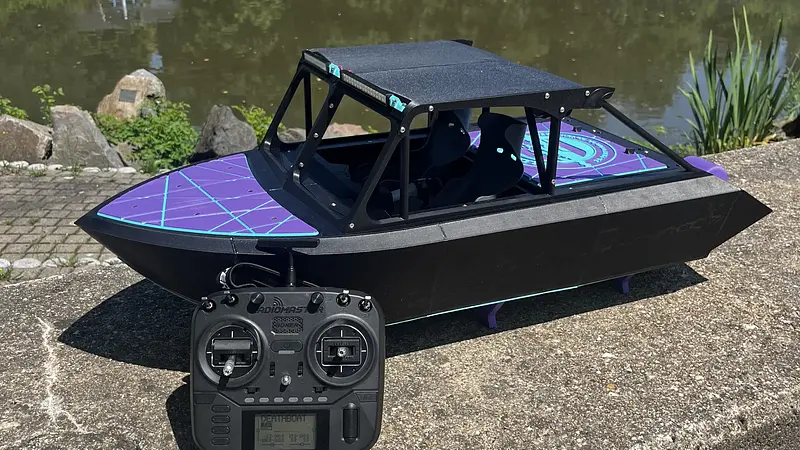

DEATHBOAT - 1/6 Scale - HAVE-IT-ALL - River Jet Boat - HPW40 incl.
Published at 2025-07-03
By HillPrinties
$54.90
★★★★★
(0 comments)
boat
RC
radio
scale
big
Crawler
Jet
rcboat
jet boat
sprint
radio controlled
controlled
scx6
1/6
shreddy
deathboat
mojo
mjet
m-jet
mjet 30
mjet 35
90% goes to the Creator
(excluding payment processing fees)
Description
Go print your own Shreddy Deathboat/Mojo!
Our river jet boat DEATHBOAT in 1/6 scale was developed according to this motto.
The model is powered by a 40 mm HPW40 jet drive with an attached 2.2 kW brushless motor on 3-6S LiPos.
You can also install your M-Jet 30 or M-Jet 35. There are separate print files for these pumps also as part of the files package.
The print data includes all the necessary data for printing the hull, HPW40 jet drive, deck, rollcage, roof, visor and add-on parts.
You can also install your M-Jet 30 or M-Jet 35. There are separate print files for these pumps also as part of the files package.
The print data includes all the necessary data for printing the hull, HPW40 jet drive, deck, rollcage, roof, visor and add-on parts.
DEATHBOAT is the successor and the logical development of our popular JET THE RIPPER/SPEEDSTER boat.
New features are the following:
- M-Jet 30 and M-Jet 35 compatible
- hull in latest design with connector instead of tongue and groove
- hull with chines, resulting in sharper/racier cornering
- trim plates
- easy-access deck's lid, fast battery change
- new deck sealing
3 BOAT VERSION IN ONE - you have the choice!!!
DEATHBOAT - Rollcage version
RIPPER - Windshield version (with roof and LED)
SPEEDSTER - Visor version
RIPPER - Windshield version (with roof and LED)
SPEEDSTER - Visor version
The data package (STL, STEP, 3mf) consists of approx. 120 different print parts, with a total of over 250 components to be printed. The resulting level of detail is outstanding.
It therefore places high demands on the builder both in terms of assembly and driving.
In addition to the print data (STL/Step + 3mf), the data package contains detailed, illustrated assembly instructions (76 pages) as well as illustrated printing instructions (22 pages). A complete parts list is also included as an Excel document. This contains a list of all required print parts, as well as a detailed description of the required add-on parts (incl. recommended motor, ESC, servo, etc.).
All documents are listed here:
https://drive.google.com/drive/folders/1eswHq536R7BtcUlxjxKcjm4pzl5SCyEF?usp=sharing
https://drive.google.com/drive/folders/1eswHq536R7BtcUlxjxKcjm4pzl5SCyEF?usp=sharing
The model can be printed in PLA tough, PETG or ABS/ASA. The double-walled hull gives the boat great stability.
For demanding trips, we strongly recommend printing in ABS/ASA. We have had the best experiences with Polymaker PolyLite ASA and ABS.
Technical data:
Length: 880 mm
Width: 355 mm
Height: 282 mm
Weight (printed parts): approx. 3,200 g
Weight (complete): approx. 5.340 g
The model is aimed at experienced 3D printing users and model makers!!!
Here you can find more boats/products from us:
The matching trailer for the Axial SCX6 is available here:
You can find more information on our Instagram/Facebook/Tiktok profile:
https://www.instagram.com/hillprinties/
https://www.facebook.com/groups/hillprinties
https://www.tiktok.com/@hillprinties
https://www.facebook.com/groups/hillprinties
https://www.tiktok.com/@hillprinties
Or via the link in the bio.
The following components are additionally required and are not part of the offer:
1x 4074 1400kV brushless motor
1x ESC 180A
2x 3-6s Lipo
2x 25kg waterproof standard servo
Remote control and receiver
various small parts
(all components listed in BoM)
Update, 07.07.2025:
- Printfiles added for M-Jet 30 and 35 integration
- revised "Connector_2-3" part
- "Relling_Windshield" part was missing
Update, 07.07.2025:
- Printfiles added for M-Jet 30 and 35 integration
- revised "Connector_2-3" part
- "Relling_Windshield" part was missing
